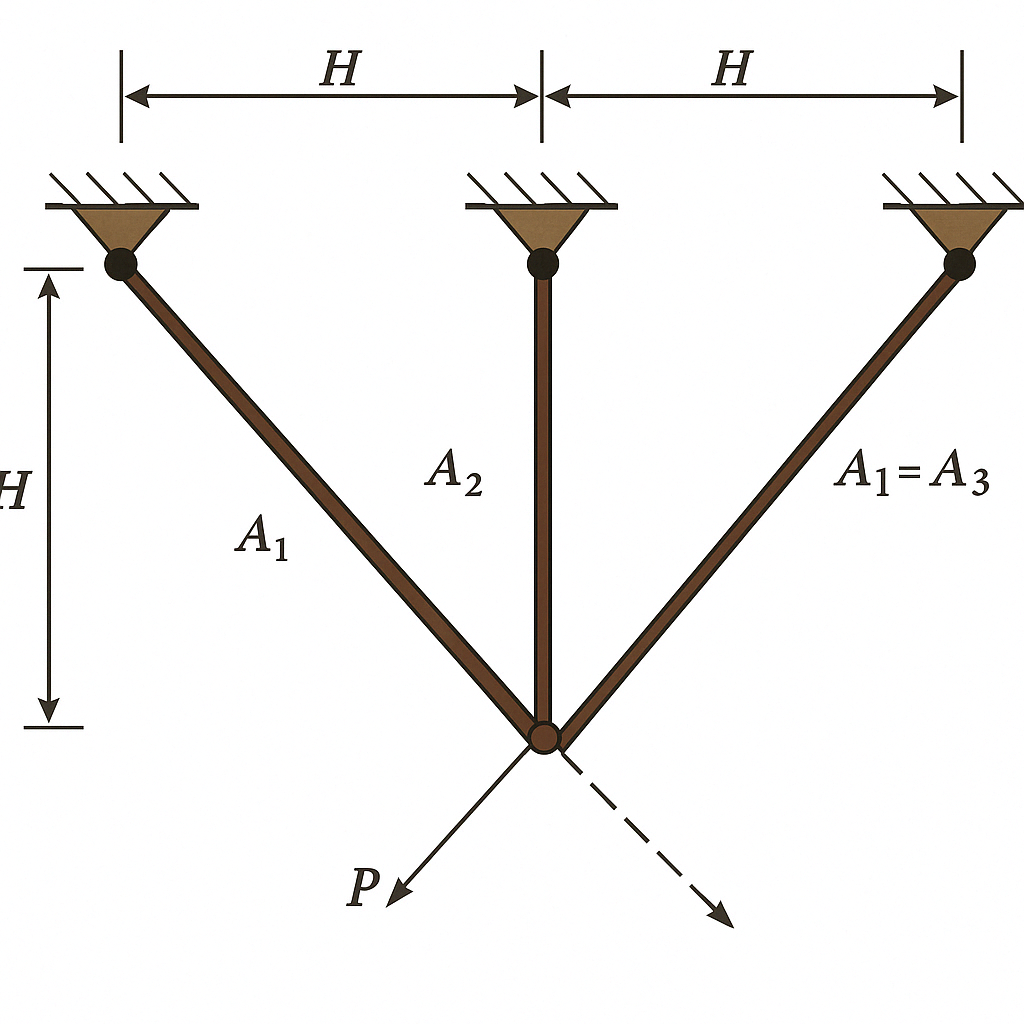

Three-Bar Truss Design Optimization¶

# =======================
# STEP 1: Define Objective function
# =======================
import numpy as np
from PyEGRO.optimize.GA import run_deterministic_optimization, save_optimization_results

def three_bar_truss_volume(X):
    """
    Calculate the volume of the three-bar truss structure in a vectorized way.

    Args:
        X: Array of design points where X[:, 0] is x₁ and X[:, 1] is x₂

    Returns:
        Array of volumes for each design point
    """
    # Ensure X is at least 2D
    X = np.atleast_2d(X)

    # Height/length parameter (cm)
    H = 100

    # Extract x1 and x2 as vectors
    x1, x2 = X[:, 0], X[:, 1]

    # Volume formula: (2√2·x₁ + x₂)·H
    volume = (2 * np.sqrt(2) * x1 + x2) * H

    return volume

# =======================
# STEP 2: Define constraint functions
# =======================

# Problem constants
H = 100      # Height/length parameter (cm)
P = 2        # Applied load (KN/cm²)
sigma = 2    # Allowable stress (KN/cm²)

def constraint_stress1(X):
    """
    Stress constraint for member 1: g₁ = (√2x₁+x₂)/(√2x₁²+2x₁x₂)·P - σ ≤ 0

    Args:
        X: Array of design points where X[:, 0] is x₁ and X[:, 1] is x₂

    Returns:
        Array of constraint values (≤ 0 means the constraint is satisfied)
    """
    # Ensure X is at least 2D
    X = np.atleast_2d(X)

    # Extract x1 and x2 as vectors
    x1, x2 = X[:, 0], X[:, 1]

    # Calculate constraint
    numerator = np.sqrt(2) * x1 + x2
    denominator = np.sqrt(2) * x1**2 + 2 * x1 * x2

    # Handle potential division by zero
    safe_denominator = np.maximum(denominator, 1e-10)
    g1 = (numerator / safe_denominator) * P - sigma

    # Replace any invalid values with a large positive number
    g1 = np.where(denominator > 1e-10, g1, 1e6)

    return g1

def constraint_stress2(X):
    """
    Stress constraint for member 2: g₂ = x₂/(√2x₁²+2x₁x₂)·P - σ ≤ 0

    Args:
        X: Array of design points where X[:, 0] is x₁ and X[:, 1] is x₂

    Returns:
        Array of constraint values (≤ 0 means the constraint is satisfied)
    """
    # Ensure X is at least 2D
    X = np.atleast_2d(X)

    # Extract x1 and x2 as vectors
    x1, x2 = X[:, 0], X[:, 1]

    # Calculate constraint
    numerator = x2
    denominator = np.sqrt(2) * x1**2 + 2 * x1 * x2

    # Handle potential division by zero
    safe_denominator = np.maximum(denominator, 1e-10)
    g2 = (numerator / safe_denominator) * P - sigma

    # Replace any invalid values with a large positive number
    g2 = np.where(denominator > 1e-10, g2, 1e6)

    return g2

def constraint_stress3(X):
    """
    Stress constraint for member 3: g₃ = 1/(x₁+√2x₂)·P - σ ≤ 0

    Args:
        X: Array of design points where X[:, 0] is x₁ and X[:, 1] is x₂

    Returns:
        Array of constraint values (≤ 0 means the constraint is satisfied)
    """
    # Ensure X is at least 2D
    X = np.atleast_2d(X)

    # Extract x1 and x2 as vectors
    x1, x2 = X[:, 0], X[:, 1]

    # Calculate constraint
    denominator = x1 + np.sqrt(2) * x2

    # Handle potential division by zero
    safe_denominator = np.maximum(denominator, 1e-10)
    g3 = (1 / safe_denominator) * P - sigma

    # Replace any invalid values with a large positive number
    g3 = np.where(denominator > 1e-10, g3, 1e6)

    return g3

# =======================
# STEP 3: Define the problem information
# =======================
data_info = {
    'variables': [
        {
            'name': 'x1',
            'vars_type': 'design_vars',
            'range_bounds': [0.0, 1.0],
            'description': 'Cross-sectional area of members 1 and 3'
        },
        {
            'name': 'x2',
            'vars_type': 'design_vars',
            'range_bounds': [0.0, 1.0],
            'description': 'Cross-sectional area of member 2'
        }
    ]
}

# =======================
# STEP 4: Define the list of constraint functions
# =======================
constraint_functions = [
    constraint_stress1,
    constraint_stress2,
    constraint_stress3
]

# =======================
# STEP 5: Run optimization with explicit constraints
# =======================
results = run_deterministic_optimization(
    data_info=data_info,
    true_func=three_bar_truss_volume,
    constraint_funcs=constraint_functions,
    pop_size=200,
    n_gen=100,
    sampling_method='lhs',
    crossover_prob=0.9,
    crossover_eta=15,
    mutation_eta=20
)

# =======================
# STEP 6: Save results and display solution
# =======================
save_optimization_results(
    results=results,
    data_info=data_info,
    save_dir='THREE_BAR_TRUSS_RESULTS'
)

# Print the solution
print("\nOptimized Solution:")
print(f"  x1 (area of members 1 and 3): {results['best_solution'][0]:.6f} cm²")
print(f"  x2 (area of member 2): {results['best_solution'][1]:.6f} cm²")
print(f"Objective Value (volume): {results['best_fitness']:.6f} cm³")
print(f"Feasible: {results['is_feasible']}")
